The Poppet Valve is the part which controls air flow through the Fusion Engine™. The valve is available in different levels of restriction to limit or maximum air flow down the barrel which promotes either higher air efficiency or higher velocity, depending on which valve you go with.

The Red Low Flow Poppet valve is the Mid-level restriction valve for a good blend of power and efficiency.

O-Rings

1x	M2.0 x 19.0 (Buna 70) - Poppet Retainer
1x	M1.5 x 15.0 (Buna 70) - Poppet Sail
1x	011 (Buna 70) - Poppet Seat
1x	011 (Buna 90) - Poppet Base

How does it work?

The standard Black poppet valve for the Fusion Engine™ allows the maximum amount of air flow through the system and it is the nozzle which restricts the flow into the barrel which varies the velocity. This gives you a wide range of velocity adjustment by simply changing out the nozzle to shift the velocity range of your rifle up or down in large increments.

The low flow poppet valve does what the name suggests and restricts flow at the valve itself so it allows less air through. Therefore the main restriction is back further in the system instead of right up front at the nozzle. Normally, with the nozzle being the restricting point, there is air backed up in the section between the poppet and the nozzle which will only be able to vent out as fast as the nozzle's restriction allows. If a more restrictive nozzle is needed to keep the muzzle velocity within field limits, there will still be air pressurized in this section after the poppet valve has closed and the BB has left the barrel so it is wasted. Since it is the poppet valve which turns the air flow on and off, having it being the restricting point instead of the nozzle conserves air since less air is allowed through at once.

The low flow poppet also helps improve how smoothly air flows down the barrel since it has time to expand slightly in the system after it goes through the valve so there is less turbulence behind the round which can improve accuracy slightly. With the poppet being the main restrictive point, the nozzle doesn't have as much of an affect on restricting flow although it can still restrict if the flow reaching the nozzle is still greater than the nozzle can let through at once. This is why you typically use a higher flow nozzle in conjunction with the low flow poppet such as a Black, Silver or Red nozzle. With the Red Low Flow poppet installed along with one of these higher flow nozzles, a Fusion Engine can achieve up to 50% greater air efficiency than a stock engine producing the same muzzle energy.

With the Red Low Flow poppet valve the rifle will be optimized for air efficiency when operating at standard field limits. While it may not be able to hit as high of a velocity in the maximum pressure range as it would have with the standard poppet valve, it will still be able to achieve rifleman and DMR velocities and with greater air efficiency.

Here are some examples of how a Red Low Flow affects muzzle velocity. Testing was done at 80psi and 120psi using a VFC M4 with a stock hop-up and 6.05x380mm barrel.

Red Nozzle	400fps - 485fps w/ .20g	355fps - 415fps w/ .32g
Silver Nozzle	390fps - 450fps w/ .20g	340fps - 390fps w/ .32g
Black Nozzle	370fps - 430fps w/ .20g	325fps - 375fps w/ .32g

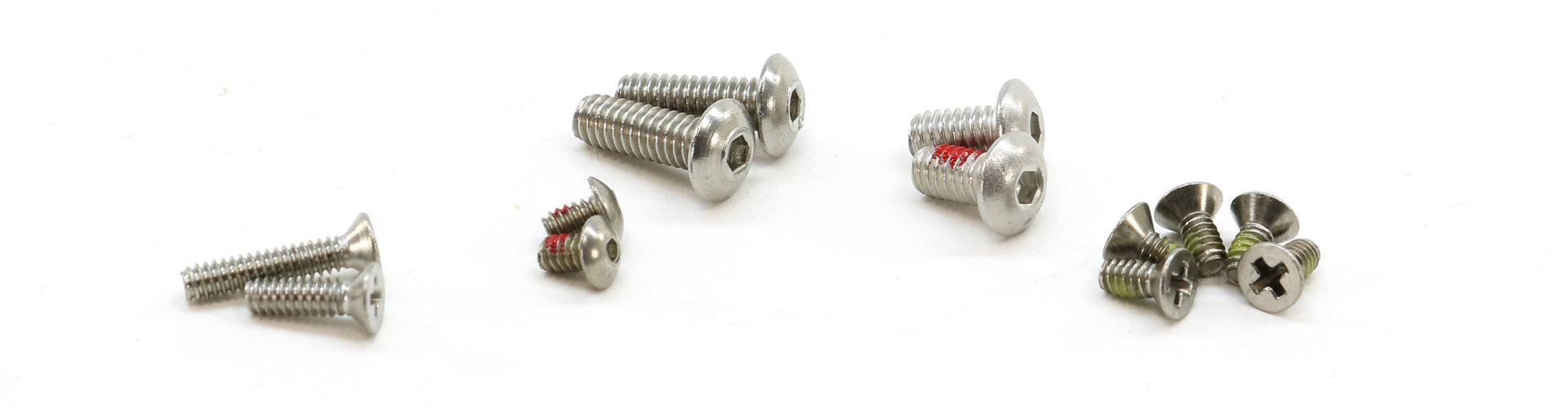

Complete Screw Set, FEV2 GEN 3
