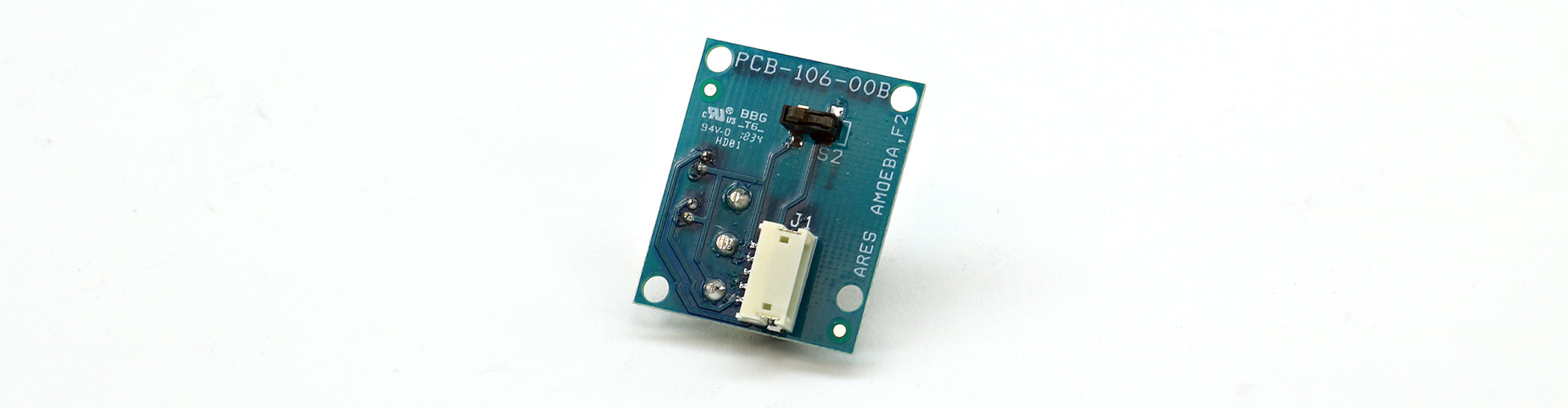

Switchboard, Ares Amoeba
This switchboard is designed to convert Ares V2 gearboxes equipped with their EFCS MOSFET system and is not compatible with other Ares gearboxes. The board is for our AEG gearbox conversion kits such as the F2, F1 and JACK and is intended for use with our specific Ares Amoeba wire harness (part# 1000304).
Header Identification: J1 = Main Harness, J2 = Poppet Solenoid, J3 = Nozzle Solenoid
(Single solenoid systems should be plugged into J2, leaving J3 empty)
