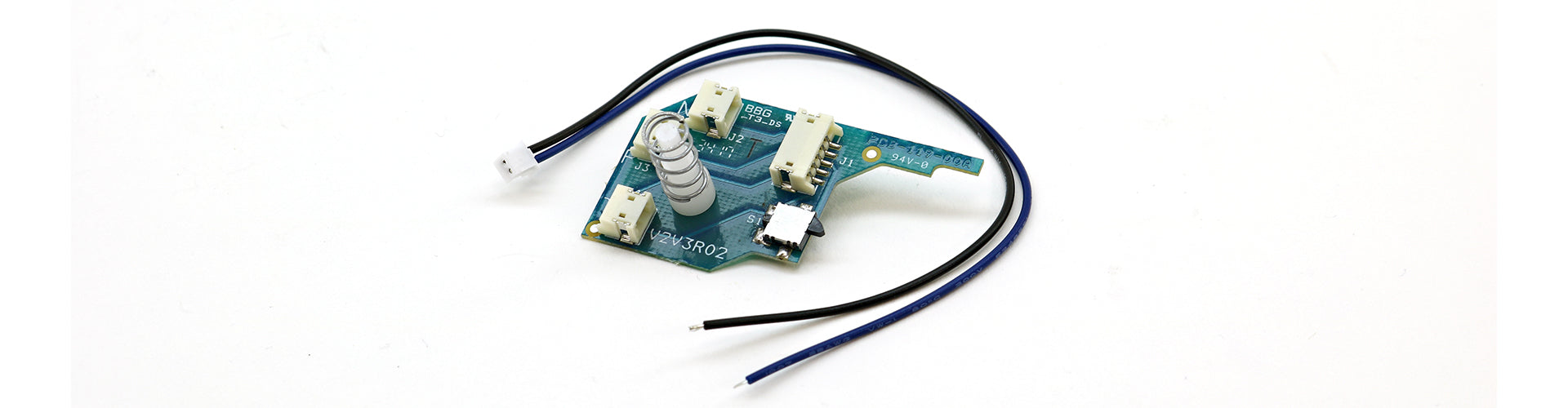

Switchboard, Ares V2 / V3
This switchboard was designed specifically for use in Ares V2 and V3 gearboxes. The front of the board is held in the tappet plate track for anti-rotation and is secured by the delrin pin which locks into the spur gear bushings of the gearbox. The spring keeps pressure against the board when the gearbox is assembled to hold it in place.
- Compatible with AEG gearbox conversion kits such as the F2, F1 and JACK.
- Includes Board, Post, Spring and 6" Trigger Leads.
- Not compatible with Fusion Engine.
Header Identification: J1 = Main Harness, J2 = Nozzle Solenoid, J3 = Poppet Solenoid, J4 = Trigger
